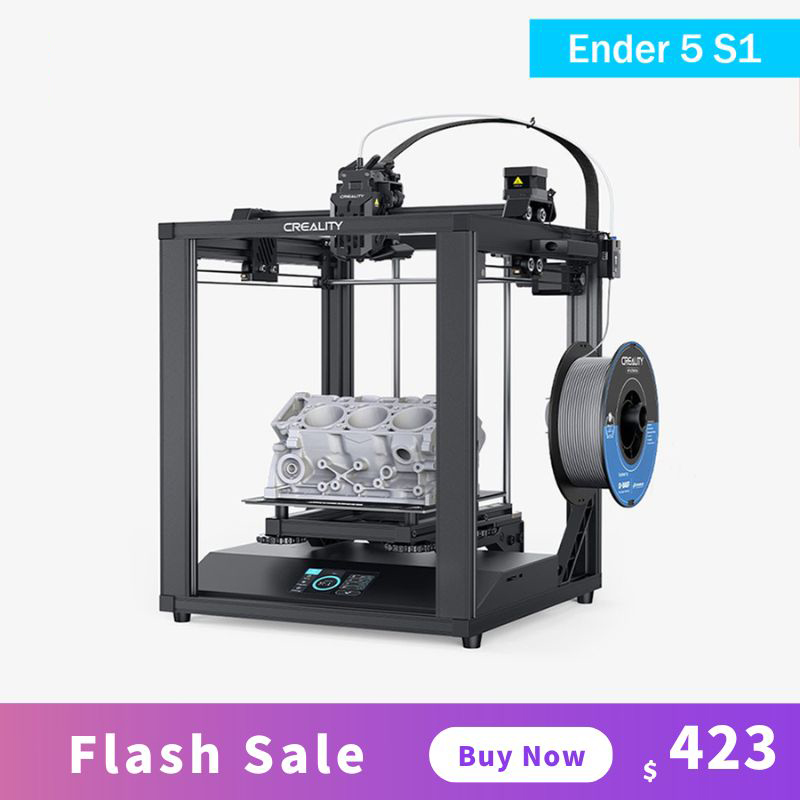

Creality Ender 5 S1 3D Printer
${propertiesText}
x ${productNum}
Added to the cart
Continue To Shopping
View Cart
People who bought this item also bought

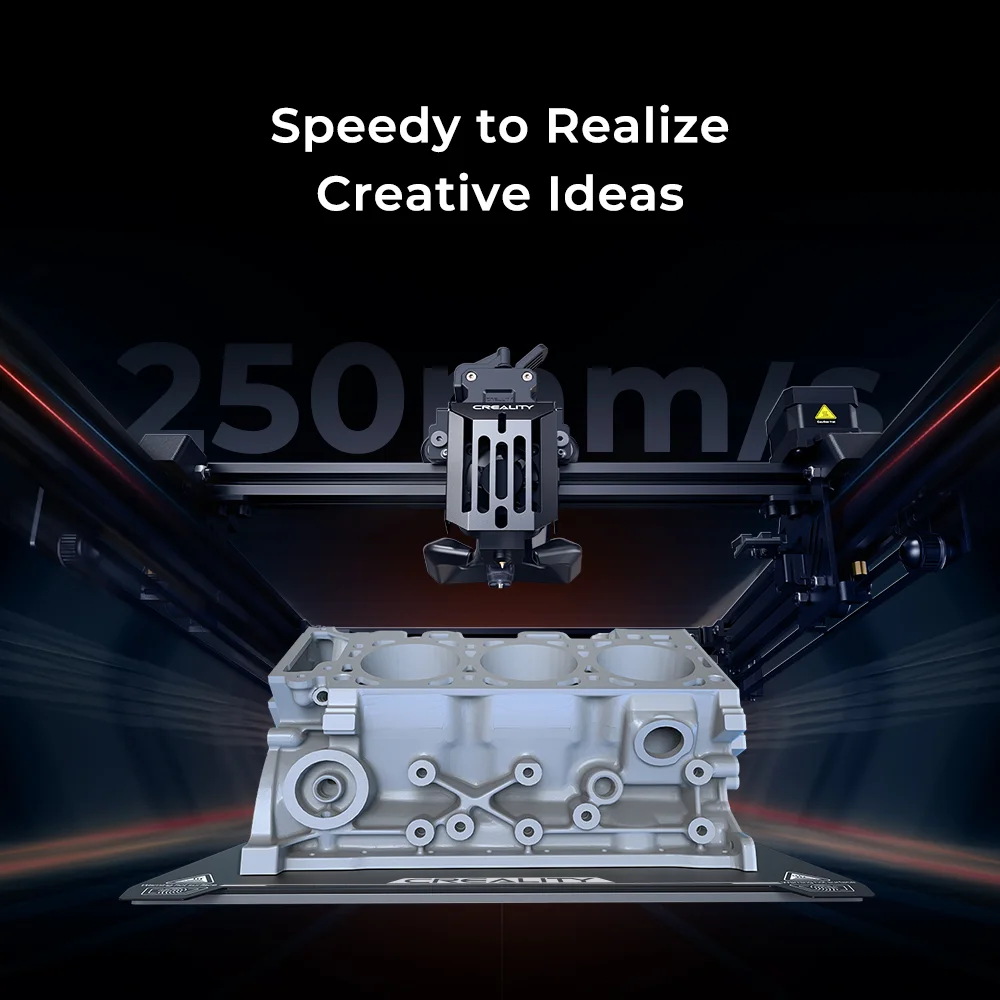

【250mm/s High-speed Printing Ender】: The Official Creality Ender 5 s1 3D Printers Refine motion system with a standalone motor at each X/Y/Z axis for up to 2000mm/s² acceleration, and a steel transmission shaft that connects and syncs the Y-axis belts. The 3D Printer alves the printing time and boosts efficiency.

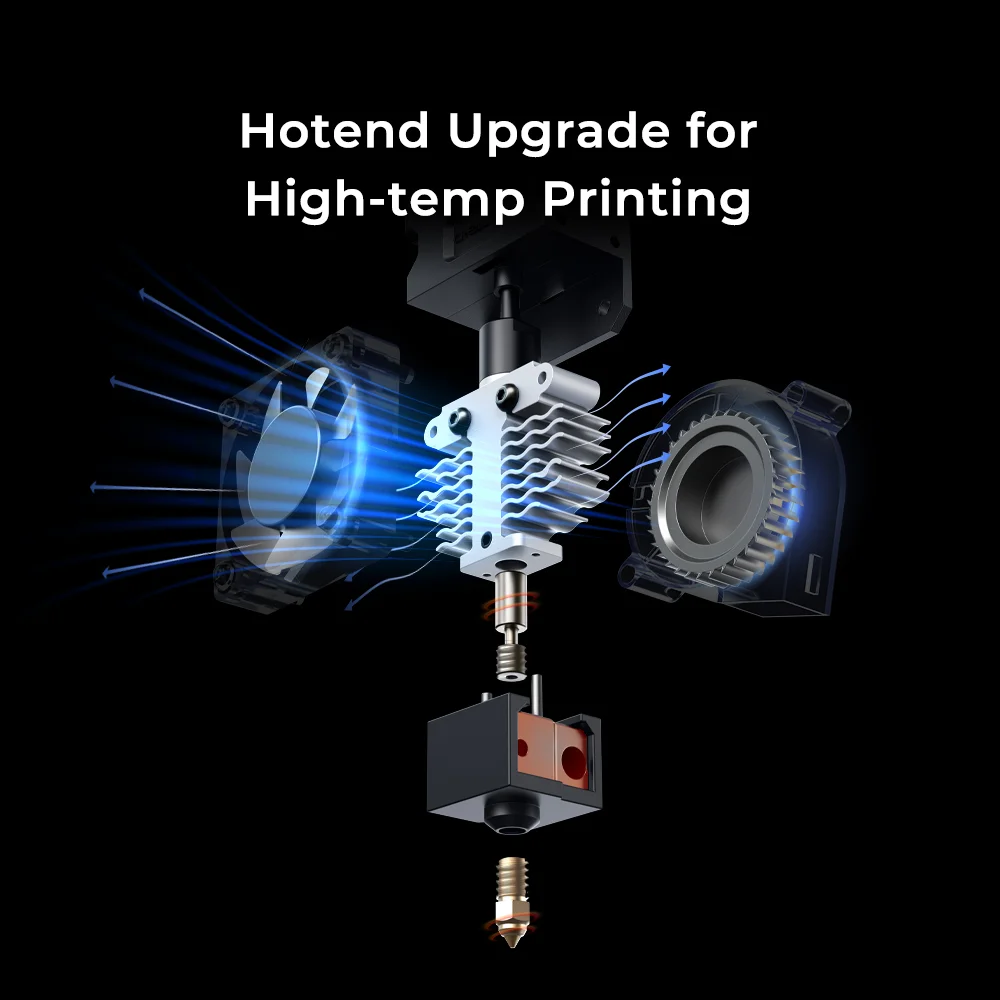

【Clog-free Direct Extrusion at 300℃】: The “Sprite” dual-gear direct extruder of the Ender 3d printer delivers a strong 80N extrusion force. The hotend features a titanium heartbreak blocking heat creep, a corrugated heatsink for rapid cooling, and a 50mm³ large melting chamber to fully melt the filament. It can print PLA, TPU, PETG, ABS, and more, clog-freely for 1,000 hours.
【Stable Frame Underpins Quality】: An all-metal cube frame goes with the classic Cartesian structure. The stability is enhanced by thick linear shafts, extra gussets, two cantilevers, and silicone bed mounts. It ensures a 100% success rate for 1,000h printing at 250mm/s.
【Auto-leveling and Smart Sensors】: The CR Touch probe realizes fully automatic precise 16-point bed leveling. The Z-offset can be adjusted at 0.05 accuracy with touch control. It also has a filament runout sensor and power loss recovery to factor in accidental moments. It is a tool to always count on.

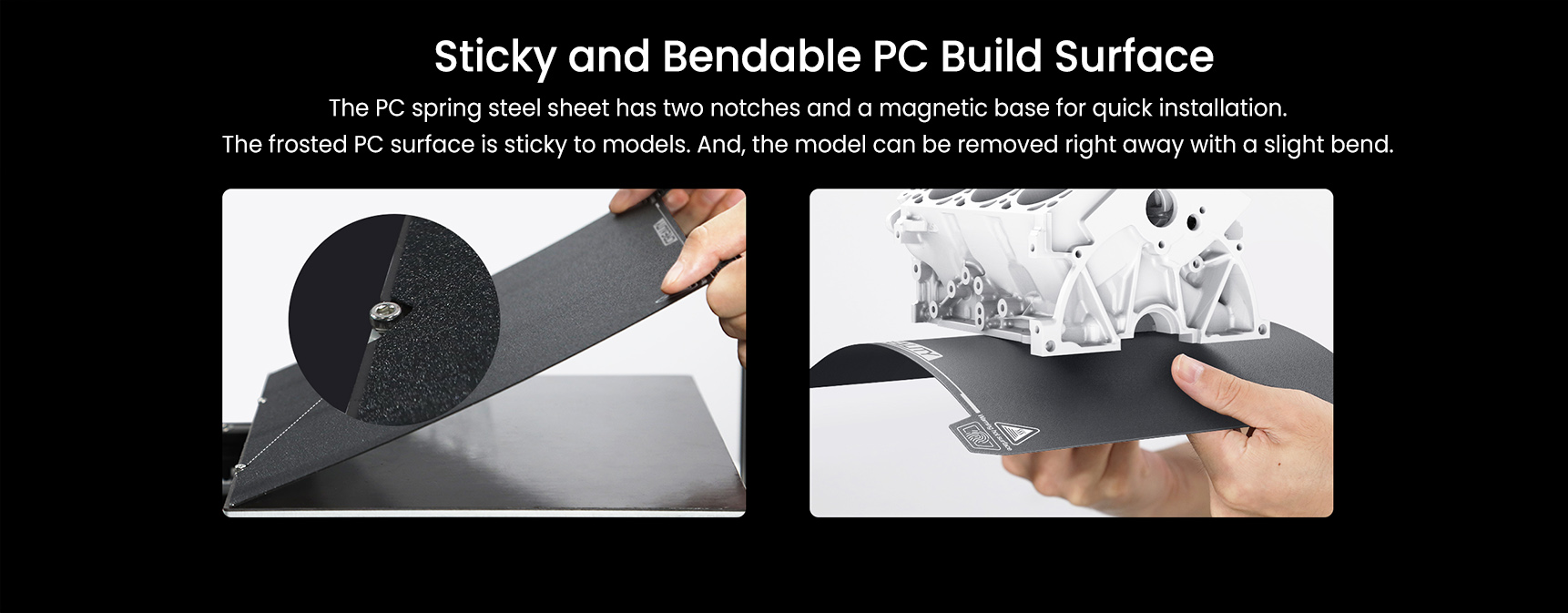

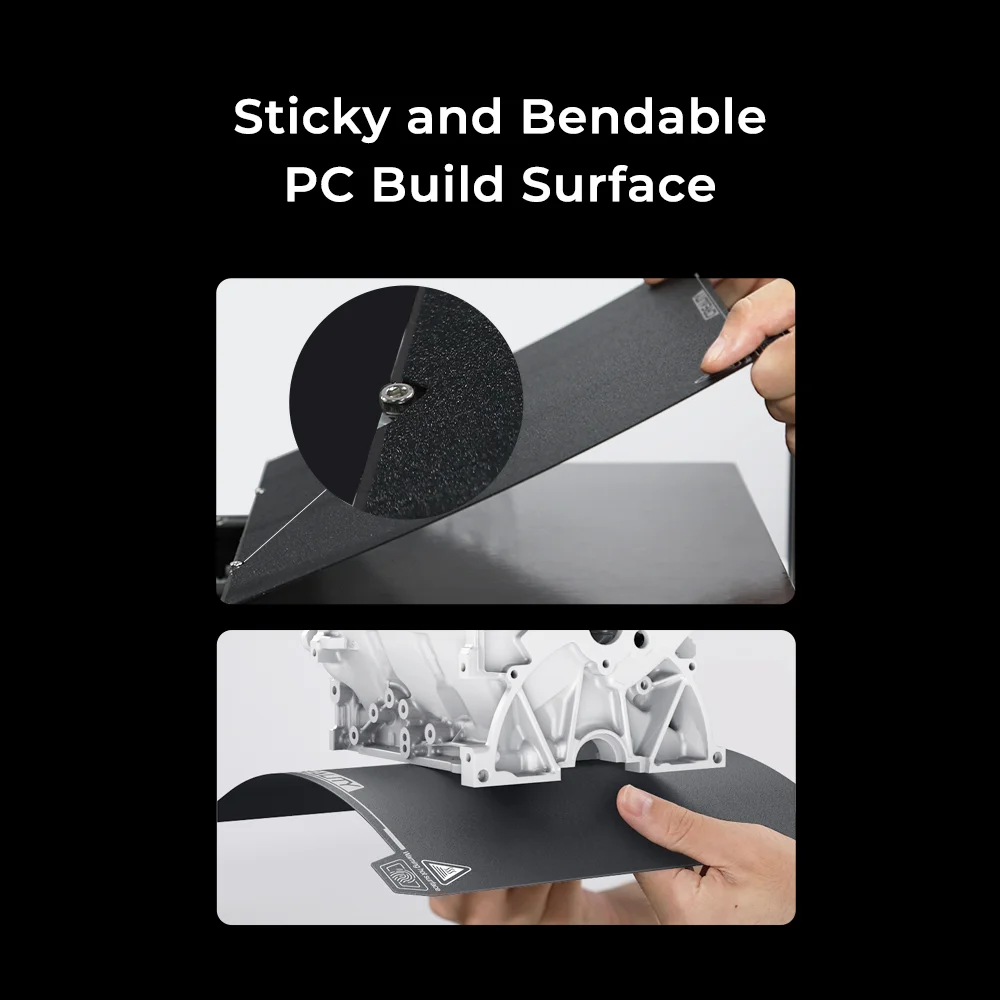

【Sticky and Bendable PC Build Surface】: The PC spring steel sheet has two notches and a magnetic base for quick installation. The frosted PC surface is sticky to models. After printing, the model can be removed right away with a slight bend.
| Ender-6 | Ender-5S1 | Ender-3V2+Sonic Pad | |
| Mechanical structure | Core-XY | Stable Cube Frame | / |
| Typical Printing Speed | 60-150mm/s | 120mm/s | 60-100mm/s |
| Max Printing Speed | Max 180mm/s | Max 250mm/s | 15-30% Speed Up |
| Printing Accuracy | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Layer Height | 0.1-0.4mm | 0.05mm-0.35mm | 0.1-0.4mm |
| Build Volume | 250*250*400mm | 220*220*280mm | 220*220*250mm |
| Build Surface | Carborundum Glass | PC Spring Steel Sheet | Carborundum Glass |
| Leveling Mode | Manual/Option BL Touch | CR Touch Auto Leveling | / |
| Extruder Type | Bowden | Sprite Direct Extrusion Dual Gear | Bowden |
| Extruder Materials | Hard Plastic | Metal | Hard plastic |
| Rated Power | 350W | 350W | 270W |
| Nozzle Temp: | ≤260℃ | ≤300℃ | ≤260℃ |
| Heatbed Temp: | ≤110℃ | ≤110℃ | ≤110℃ |
| Powe Loss Recovery | √ | √ | √ |
| Filament Sensor | √ | √ | X |
| Display Screen | 4.3inches Color Touchscreen | 4.3inches Color Touchscreen | 4.3Inc HD Screen with Knob |
| Support Material | PLA/TPU/PLA-Wood/Carbon Fiber.. | PLA, PETG, ABS, TPU, PC, ASA, HIPS | PLA/TPU/PETG |
►YOUTUBE SHARE & DEPTH REVIEWS
Creality Ender-5 S1 Take a closer Look! | Creality Ender-5S1 with Sonic Pad Kilpper Screen - From Aurora Tech

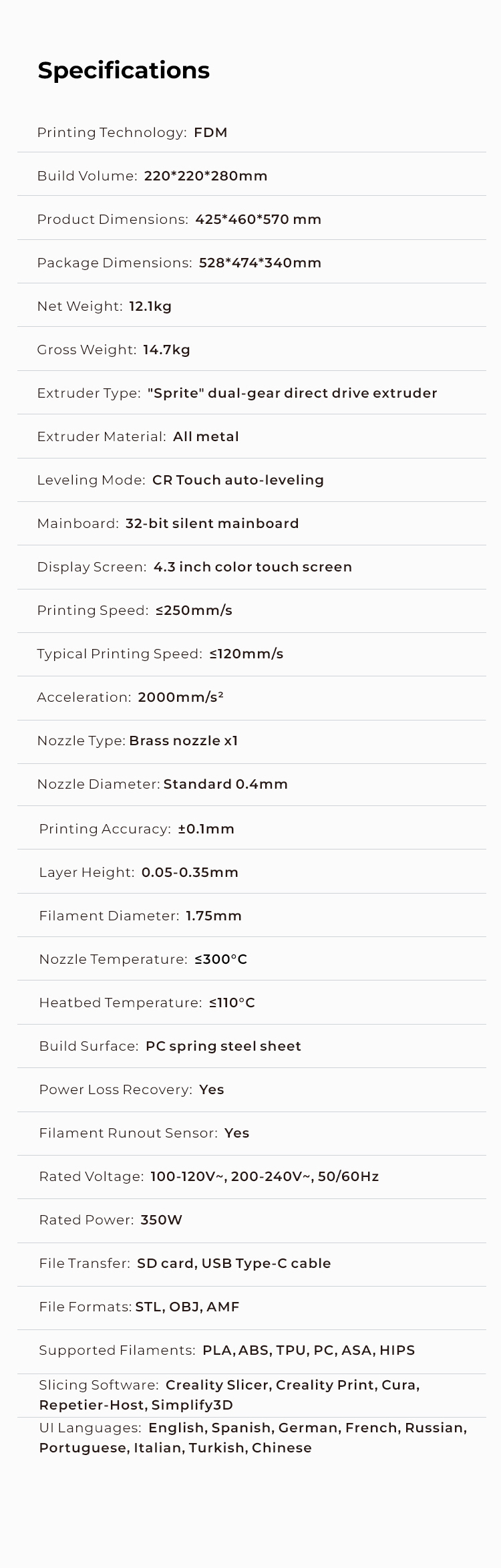

►Product Parameter & Comparison
Molding Technology: FDM
Build Volume: 220*220*280mm
Net Weight: 12.1kg
Gross Weight: 14.7kg
Extruder Type: "Sprite" dual-gear direct drive extruder
Extruder Material: All metal
Leveling Mode: CR Touch Auto leveling
Mainboard: 32-bit silent mainboard
Display Screen: 4.3-inch color touch screen
Printing Speed: ≤250mm/s
Typical Printing Speed: ≤120mm/s
Acceleration: 2000mm/s²
Nozzle Type: Brass nozzle x1
Nozzle Diameter: Standard 0.4mm
Printing Accuracy: ±0.1mm
Layer Height: 0.05-0.35mm
Filament Diameter: 1.75mm
Nozzle Temperature: ≤300°C
Heated Temperature: ≤110°C
Build Surface: PC spring steel sheet.
Power Loss Recovery: Yes
Filament Runout Sensor: Yes
Rated Voltage: 100-120V~, 200-240V~, 50/60Hz
Rated Power: 350W
File Transfer: SD card, USB Type-C cable
File Formats: STL, OBJ, AMF
Supported Filaments: PLA, ABS, TPU, PC, ASA, HIPS
Slicing Software: Creality Slicer, Creality Print, Cura, Repetier-Host, Simplify3D
UI Languages: English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Chinese
Customer Reviews
Based on 43 reviews
84%
(36)
16%
(7)
0%
(0)
0%
(0)
0%
(0)
Write A Review
Ask A Question
Kyle
Important note for anyone looking at this printer****
the nozzle size is a 0.4 spider nozzle not an MK8. there is no mention of this and tech support is little help.
the hot end they use is a modified "Sprite" running a longer nozzle and heat block than the standard sprite.
MakerWerks
I own an original Ender 5 that I've modded a bit over the years. It's a solid printer that turns out good results. When I saw the pre-sale for the Ender 5 S1 I jumped in and am extremely happy I did. The printer shipped and arrived in a timely fashion. The box arrived in good condition. Assembly was a breeze and I had only one minor hitch. While routing cables after it was built, the connector for the Y stepper pulled out a bit from the connection at the motor and the printer would fail when trying to home the printhead. Once I found and corrected the issue, everything worked great.
The print quality is very good. I had to dial in my Z offset, as my initial setting was a little too squished. The printer is indeed fast and I've yet to have a print failure. It's reasonably quiet, but I've upgraded my old Ender 5 with a silent board and it's MUCH more quiet than the new one. Another odd annoyance is when my part cooling fan is running at less than 100 percent it makes a shrill and very annoying whistling noise. The removable flex build plate is nice, but as many others have said, it's VERY difficult to remove the prints once done. I ended up using some glue stick as a boundary layer. I'd prefer a PEI plate like my MK3S+. I like the touchscreen but honestly miss some of the info available on my old Ender 5. I'd love to be able to see the part cooling fan speed. Long STL file names don't scroll on-screen. I've been very happy with the printer overall and would recommend it to anybody.
DE Johnson
One if the best reviews of any product seen to date
Renault
This printer was fairly simple to assemble, took maybe a half hour and it was up and running. I will admit that I had one small problem and that was that the machine out of the box was set to 220 once I I switched it to 110 everything was fine. I leveled the bed and printed one of the samples and it printed great. I have 3 other printers but this printer out of the box had the best test print of them all. I will definitely buy another.
Nelson
J'ai la Ender 5 depuis début janvier et je dois avouer que je suis surpris par la qualité d'impression qui est excellente.
Au travail nous avons une Prusa qui est plus compliqué à régler.
J'ai ajouté une plaque en verre (1.5€ chez Castorama), car le plateau était légèrement concave, et du coup plateau complètement plan et très simple a régler.
Je conseil cette imprimante, à tout passionné, il faut cependant passer pas mal de temps sur les réglages du slicer pour obtenir une bonne qualité, mais c'est complètement indépendant de l'imprimante.
Mac
Very good 3D Printer!!
Aaron Lancaster
Q
What are the key differences between the Creality Ender 5S1 and the original Creality Ender 5?
A
The Creality Ender 5S1 is an upgraded version of the original Ender 5 with several notable enhancements. One of the main differences is the inclusion of a touchscreen LCD display, which provides a more intuitive and user-friendly interface for controlling the printer settings. Additionally, the Ender 5S1 features a filament run-out sensor, enabling it to pause printing when the filament is depleted and resume once a new filament spool is loaded. The Ender 5S1 also boasts an upgraded motherboard for improved overall performance and stability.
Dennis Stevens
Q
How does the Creality Ender 5S1 ensure precise and reliable printing?
A
The Creality Ender 5S1 incorporates a robust and stable frame design, ensuring minimal vibrations during the printing process. This stability, combined with the dual Y-axis motors and dual Z-axis lead screws, results in more accurate and precise layer alignment. The printer's upgraded extruder system with a dual-gear mechanism provides better filament grip, reducing the risk of filament slipping or under extrusion. These features contribute to consistent and reliable printing results.
Nathanial
Q
Can the Creality Ender 5S1 accommodate various filament materials?
A
Yes, the Creality Ender 5S1 is compatible with a wide range of filament materials, including PLA, ABS, PETG, TPU, and more. It features a heated print bed with excellent temperature control, ensuring proper adhesion and preventing warping issues. The printer's hotend can reach temperatures of up to 260°C, allowing users to experiment with different filaments and achieve versatile printing results.
Charles B.
Q
What convenience features does the Creality Ender 5S1 offer to users?
A
The Creality Ender 5S1 is equipped with several user-friendly features to enhance the printing experience. It includes a built-in SD card slot and USB connectivity, providing flexible options for file transfer and printing. The printer also has a power recovery function that allows printing to resume in the event of a power outage. Furthermore, the Ender 5S1's semi-enclosed design and efficient filament management system contribute to a cleaner and more organized workspace. Overall, these convenience features aim to provide a seamless and enjoyable 3D printing experience for users.
$
